Modular Drill Barge for Sale: A Proven Platform for Mineral Exploration & Marine Drilling

When it comes to precision drilling in challenging environments, having the right platform is critical. Whether for geotechnical investigations, marine construction, or mineral exploration, contractors need a solution that delivers stability, accuracy, and mobility.

At Warkentin Fabricating, we delivered a 30’ x 40’ Modular Drill Barge to support NPLH Drilling in their mineral exploration program for a future mine development. This project highlights how a purpose-built system outperforms traditional or modified platforms.

If you’re searching for a barge for sale or exploring barges for sale for drilling applications, this case study shows what to look for in a high-performance solution.

The Challenge: Stability and Precision in Remote Drilling Environments

Mineral exploration often takes place in remote, water-access locations where conventional equipment struggles to perform. For NPLH Drilling, the key challenges included:

• Maintaining drilling accuracy under dynamic loads

• Minimizing platform movement during operation

• Accessing hard-to-reach sites

• Supporting heavy drill rigs and torque demands

A standard work barge simply wouldn’t deliver the level of performance required.

The Solution: A Purpose-Built Modular Drill Barge

To meet these demands, we engineered a 30’ x 40’ x 4’ Modular Drill Barge Package, specifically designed for drilling applications.

Key Features:

Modular Design for Mobility

• (3) 10’ x 40’ sections

• Truckable components for easy transport

• Fast pin-together assembly on-site




Drill-Optimized Layout

• 4’ x 8’ center moonpool for true vertical drilling access

• Open deck layout for efficient rig positioning




Hydraulic Spud System for Stability

• (4) hydraulic spuds with down pressure

• Reduced drift and movement during drilling

• Improved bore accuracy and repeatability




Heavy-Duty Structural Build

• 1/4” steel plate hull

• Reinforced framing for high drill loads and torque

• Fully welded watertight construction




Safety & Durability

• 42” guardrails and integrated toe kicks

• Marine-grade epoxy coating for corrosion resistance

• Designed for both freshwater and marine environments

Real-World Application: Supporting Mineral Exploration

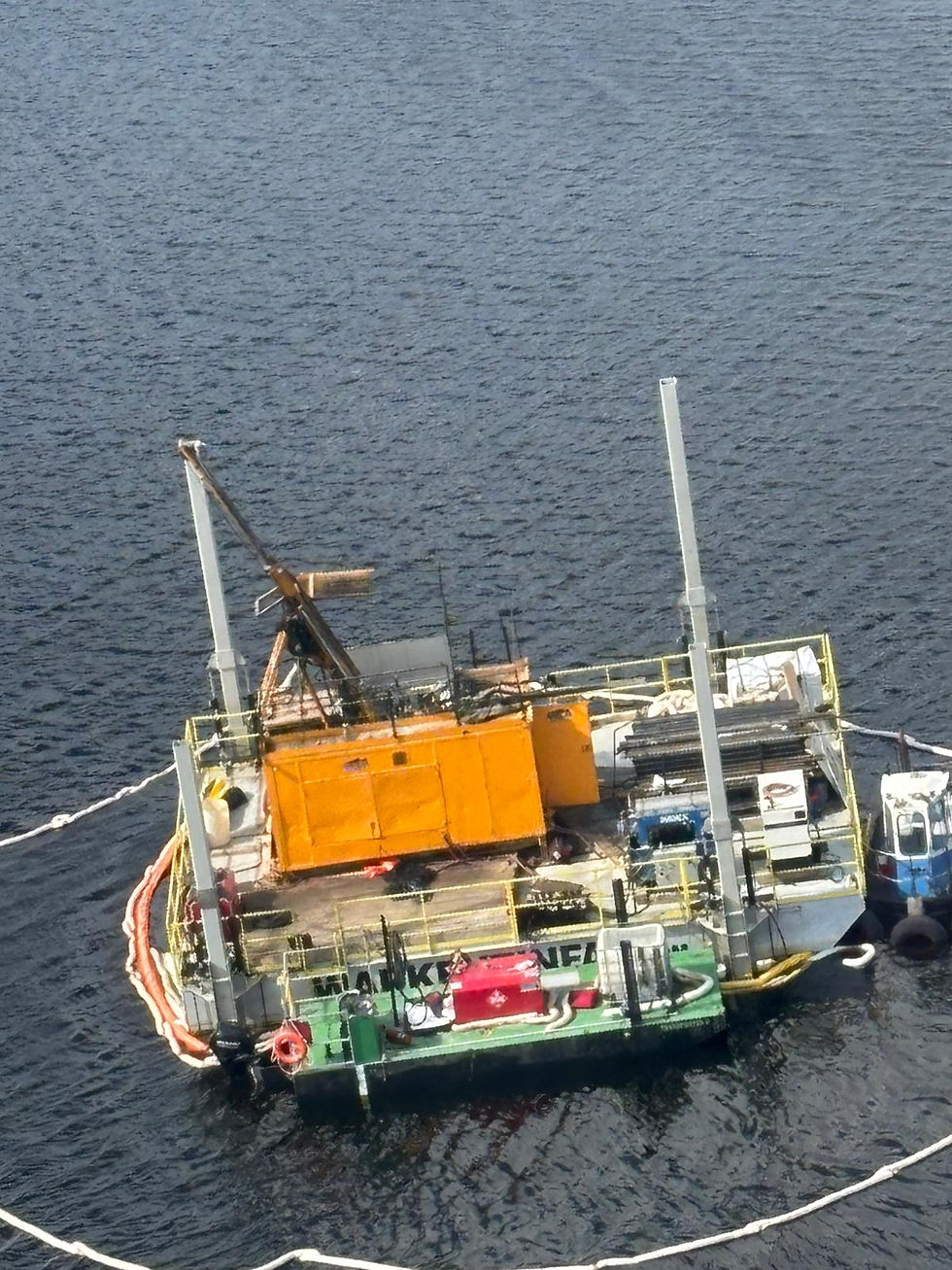

This modular drill barge is now actively being used by NPLH Drilling as a stable, elevated drill platform for mineral exploration tied to future mine development.

In the field, the system delivers:

• Consistent drilling accuracy due to reduced platform movement

• Reliable positioning in soft ground and shoreline conditions

• Efficient mobilization into remote exploration sites

• A safer, more controlled working environment for crews




The result is a platform that performs exactly as intended — on the drill line, where precision matters most.

Barge for Sale: Built for

Performance, Ready for Your Next Project

This project demonstrates what’s possible when engineering meets real-world application. Our modular drill barges are built to handle the toughest conditions while delivering the precision contractors depend on.

If you’re exploring barges for sale and need a reliable, high-performance drilling platform, we’re here to help.

Get Started

Looking for a drill barge for sale that’s built for your exact application?

📩 Contact Warkentin Fabricating today to learn more about our modular barge solutions and how we can support your next project.
